MFG Semi Frameless Posts
Product Description

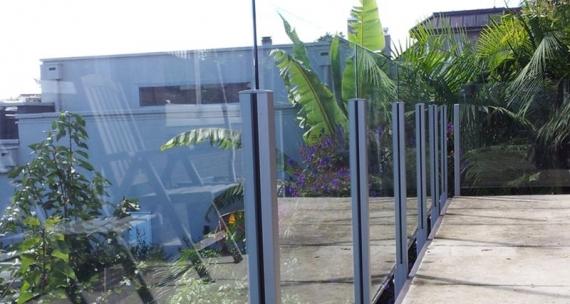

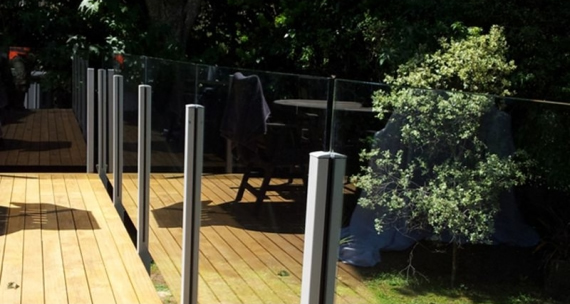

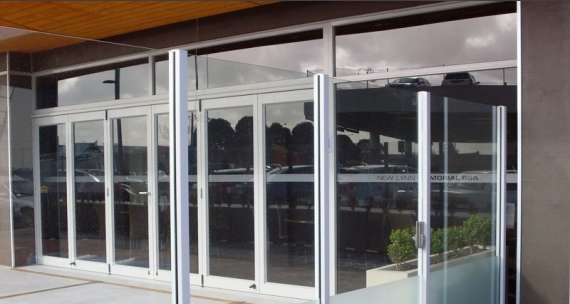

MFG Semi Frameless Posts are aluminum profile 65mm x 45mm in Mill or Powder Coat Finish. Our standard powder coat finish is silver frost.
The system is made to use 10mm toughened glass infill panels and can span up 1400mm between posts at 1000mm high depending on wind loads. Suitable for balustrades, pool fences and wind breaks, it is a cost effective way to enhance your deck, pool or stairways.
Available in both base and face fixed versions in full or ¾ height posts.
PS1 available on request.
Technical Files
CAD Files
-
6.1-metro-post-system-to-suit-10mm-toughened-glass.pdf
-
6.2-span-charts.pdf
-
6.7-base-plates-for-top-mount-posts.pdf
-
6.9-typical-top-mount-timber-fix.pdf
-
6.10-typical-top-mount-to-concrete-type-2-base-plate.pdf
-
6.11-typical-top-mount-to-concrete-type-3-base-plate.pdf
-
6.12-typical-top-embedment-into-concrete.pdf
-
6.13-typical-top-mount-to-steel-type-3-base-plate.pdf
-
6.14-typical-face-fix-to-timber-deck-coach-screws.pdf
-
6.15-typical-face-fix-to-timber-deck-bolts-threaded-rods2.pdf
-
6.16-typical-face-fix-to-concrete.pdf
-
6.17-typical-face-fix-to-steel-section.pdf
-
6.18-face-fix-example-to-waterproofed-timber-deck.pdf
-
6.19-post-details-components.pdf
