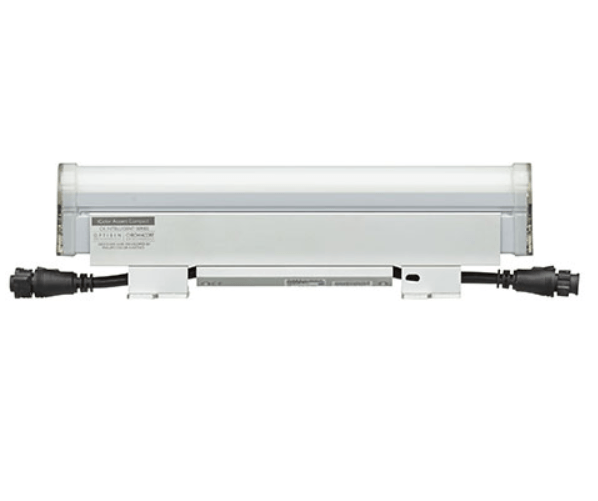

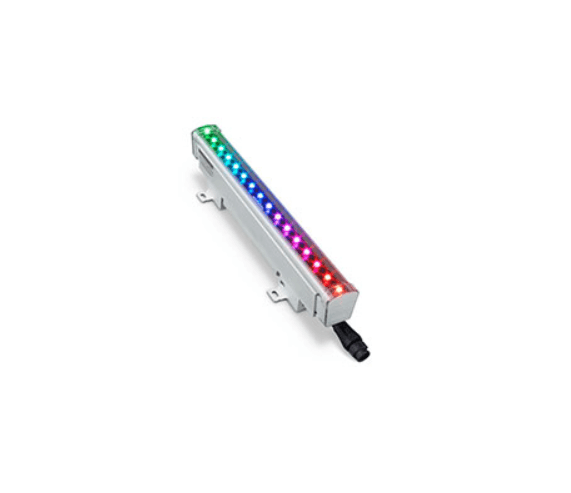

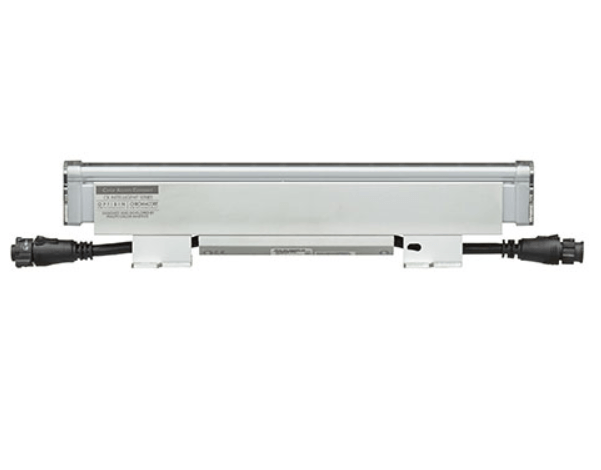

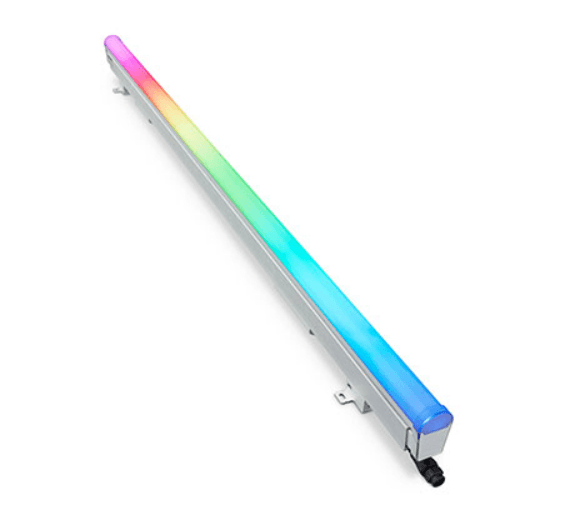

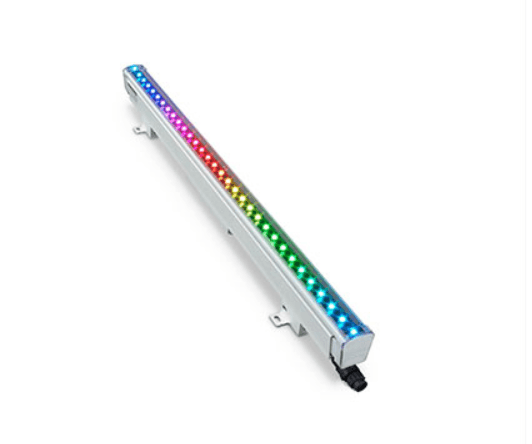

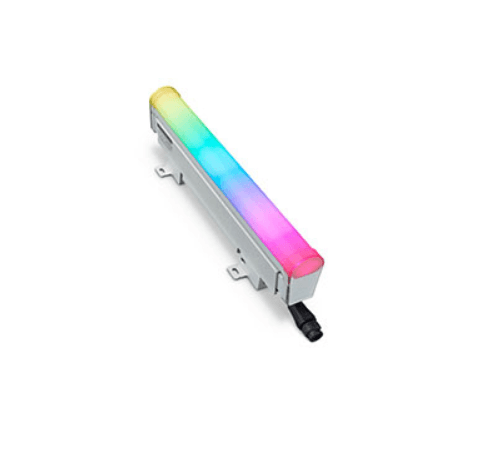

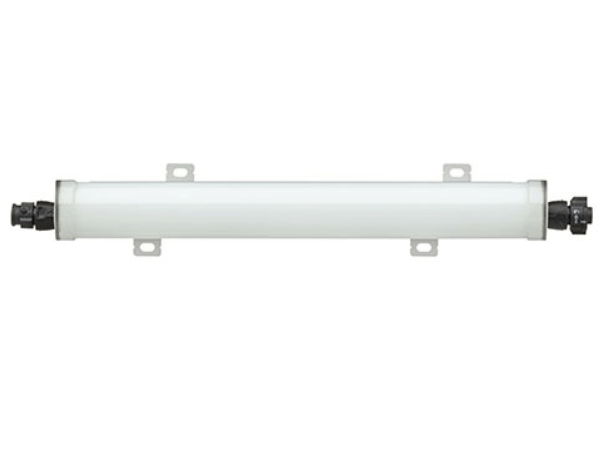

iColor Accent Compact
Product Description
iColor Accent Compact is a direct view linear LED luminaire ideally suited for displaying large-scale video, graphics, and intricately designed effects in a host of architectural settings. iColor Accent Compact accepts Ethernet input from the PDS-400 48V EO to support long control runs not subject to DMX data and addressing limitations. Two lens choices are available for iColor Accent Compact: a clear lens which delivers the brightest output and a translucent lens which provides the widest viewing angle.
Specifications/Features
- Viewing Angle; 105°, 210°
- Lumens per foot* 88 to 115
* 305 mm (1 ft) lumen output measurements comply with IES LM-79-08 testing procedures. 610 mm (2 ft), and 1220 mm (4 ft) measurements are estimated based on the 305 mm (1 ft) measurements.
- LED Channels: Red/Green/Blue
- Input Voltage: 100 to 277 VAC, auto-ranging, 48V via PDS-400 48V EO
- Housing Material: Extruded aluminium and polycarbonate
- Approbations: UL/cUL, FCC Class A, CE, CQC, RCM
- Environment: Dry/Damp/Wet Location, IP66
- Applications: Direct View
